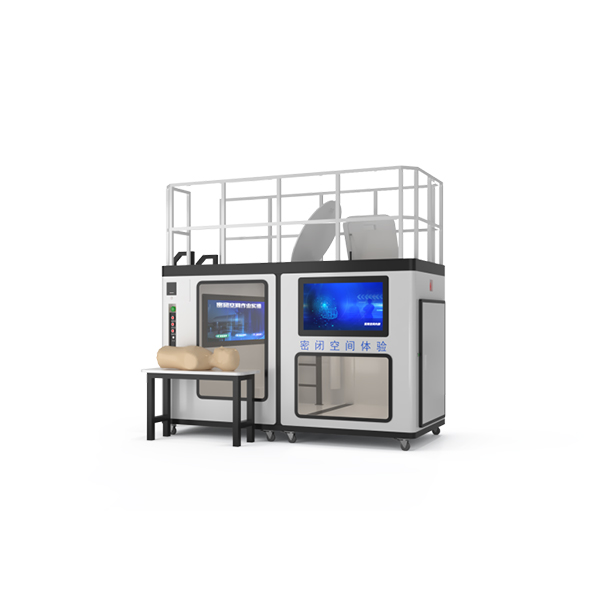

The Intelligent Confined Space Simulator (Guardrail Version) delivers a highly immersive, real-world replication of confined space operations. It provides comprehensive training that spans across the entire operational lifecycle—including pre-work inspections, in-progress environmental detection, emergency first-aid responses during unforeseen incidents, and post-work site cleanup. This simulator is engineered to give trainees a realistic sense of the inherent risks associated with confined space entries while reinforcing the critical importance of standardized compliance, effectively elevating safety consciousness and hands-on operational expertise for all relevant personnel.
Dimensions: 3260 × 1800 × 3000 mm
Product ID: GM-AB01-2207
System Components: Hardware & Software Integration
Confined Space Operation, Escape & CPR Linkage: Seamlessly integrates confined space tasks with emergency escape protocols and synchronized Cardiopulmonary Resuscitation (CPR) training.
Hardware & Software Integration: Employs high-fidelity hardware units to replicate physical confined space environments, combined with proprietary software to simulate step-by-step real-world operational workflows.
Intelligent Dual-Screen Display: Facilitates dual-screen synchronous visualization, enabling real-time status updates and multi-angle viewing for comprehensive instructional delivery.
Dual Operational Modes: Features independent Teaching Mode and Assessment Mode to support both structured learning paths and strict compliance testing.
Comprehensive Safety Training: Delivers complete hands-on exercises and conceptual assessments covering confined space safety regulations, risk identification, on-site verification, emergency rescue protocols, and theoretical knowledge evaluations.
Guest Mode: Instant access for direct experience; training data and evaluation metrics will not be uploaded to the central terminal server.
ID Card Authentication: Enables swift login via physical ID card scanning; all operational metrics and performance data are automatically synced and uploaded to the system.
QR Code Authentication: Allows quick access via QR code scanning; performance and session data are seamlessly uploaded to the central platform (requires an active network connection with the master terminal system).
| Component / Metric | Detailed Technical Specifications |
| Main Enclosure & Structure | • Integrated sheet metal cabinet (2mm thickness) with premium electroplated protective paint spray finish. • Equipped with heavy-duty steel structure inclined ladders and a secure top-level guardrail system. • Guardrail Height: 1.25 meters. |
Smart Touch Display Units (2x Units) | • Size & Screen: Dual 32-inch high-precision capacitive multi-touch all-in-one PCs. • Core Configuration: Intel Core i3 Processor / 4GB RAM / 128GB SSD. • Display Quality: Resolution: 1920×1080 Full HD; Aspect Ratio: 16:9; Brightness: 350 cd/㎡; Contrast Ratio: 3000:1; Color Depth: 16.7M; Active Display Area: 476.64mm × 268.11mm; Lifespan: ≥ 60,000 hours; Viewing Angle: 89°/89°/89°/89° (Full Ultra-Wide Angle). • Touch Performance: Response Time: First click < 16ms, repeated click < 6ms; Minimum Touch Diameter: 5mm; Touch Accuracy: ±2mm across 99% of the active touch region. • Optical Characteristics: 99% light transmittance; default high-strength tempered glass (AG anti-glare / AR anti-reflective custom options available). • Electrical & Power: Touch operating voltage +5VDC (range: +4.75V to +5.25V); touch power consumption: 0.5W to 1.5W; System input voltage: AC 110V–240V, 50/60Hz; Rated power: 42W; Dedicated wide-range power module: 110V-220V, 50Hz (maximum power consumption 36W) featuring automated internal short-circuit protection. • Audio System: Built-in premium speakers with 8Ω, 6W dual-channel audio power amplifier output. • Connectivity Interfaces: LVDS panel drive interface; Output: VGA, HDMI, VGA expansion ports; Input: USB, SIM, MIC, RS-232 serial communication ports. |
| Environmental Smoke Simulator | • Advanced high-output smoke generator utilizing a safe mixture of pure water and propylene glycol solution. • Generates an organic, completely harmless, naturally dispersing volatile smoke to safely simulate the presence of toxic gases and hazardous vapors inside confined spaces. |
| Gas Detection Simulator | • Press-to-activate digital air quality/gas detector module. • Fully integrated with the software platform to simulate real-time measurement and analysis of hazardous atmospheric conditions within the simulation chamber. |
| Infrared Monitoring Module | • Multi-point infrared sensor array installed at all major entry and exit ports. • Automates the tracking and validation of personnel entering or exiting the confined enclosure. |
| Core Software Ecosystem | • Supports intelligent access control and real-time entry/exit tracking mechanisms. • Triggers interactive knowledge questionnaires, compliance workflows, and hazard assessment tasks upon user entry. • Fully supports full-cycle Cardiopulmonary Resuscitation (CPR) process evaluation and performance scoring. |
